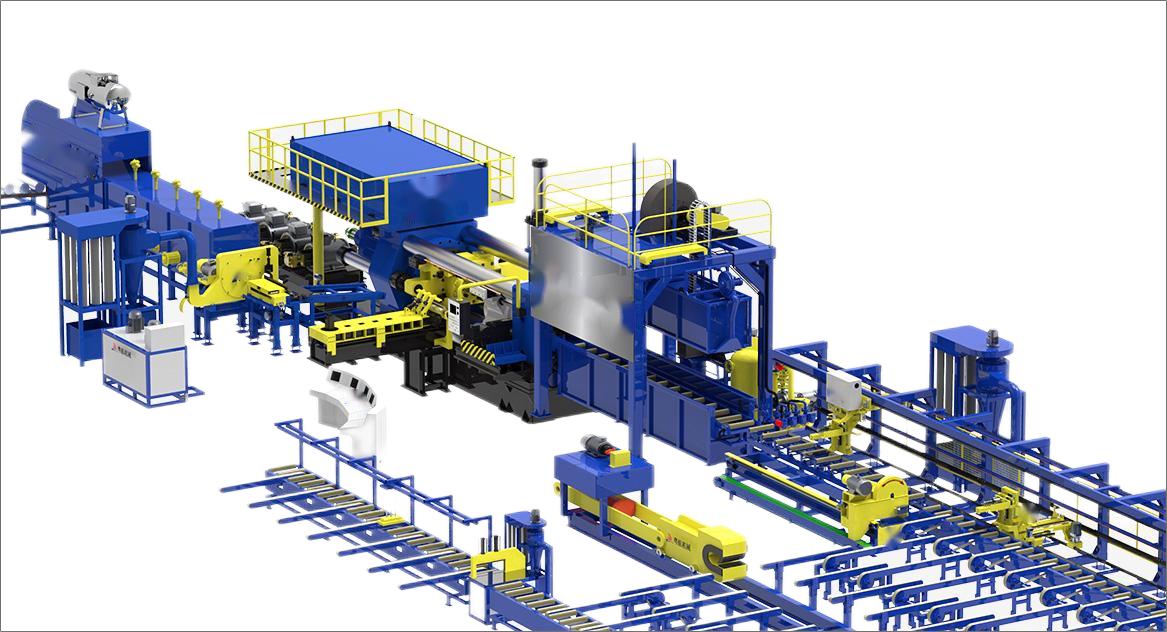

Aluminum Profile Production Line
The aluminum profile intelligent production line is to exchange data with various equipment required in the aluminum profile extrusion process through advanced industrial control equipment and the industrial Internet, and upload the operation and storage data of the entire production line to the data processing center through industrial control software. The processing time of the entire extrusion production line in the extrusion process is faster, more accurate and more convenient for maintenance. So as to realize the rationalization of the extrusion process in the production process and maximize the efficiency.
Product Details
| Standard Extruder Parameters(Unit/mm) | ||||
| Tonnage | Type | Aluminum rod (diameter* length) | Outlet size (width*height) | Unit pressure of extrusion cylinder |
| 700T | Long stroke | D100*580 | 140*130 | 77 |
| 800T | Short stroke | D105*600 | 180*80 | 77 |
| 1000T | Short stroke | D127*720 | 180*80 | 79.5 |
| 1250T | Short stroke | D135*750 | 200*80 | 80 |
| 1450T | Short stroke | D152*900 | 230*100 | 75.5 |
| 1650T | Short stroke | D178*900 | 230*110 | 66.7 |
| 1800T | Short stroke | D178*1100 | 260*100 | 68.8 |
| 2000T | Short stroke | D203*900 | 300*120 | 57.2 |
| 2200T | Short stroke | D203*1100 | 300*120 | 62.9 |
| 2700T | Short stroke | D203*1300 | 350*140 | 60 |
| 3000T | Short stroke | D254*1200 | 380*150 | 54.8 |
| 3600T | Short stroke | D305*1200 | 460*180 | 45.6 |
| 4000T | Short stroke | D305*1300 | 500*180 | 46 |
| 4500T | Short stroke | D305*1350 | 530*180 | 48.7 |
| 5000T | Short stroke | D305*1350 | 680*250 | 46.7 |
