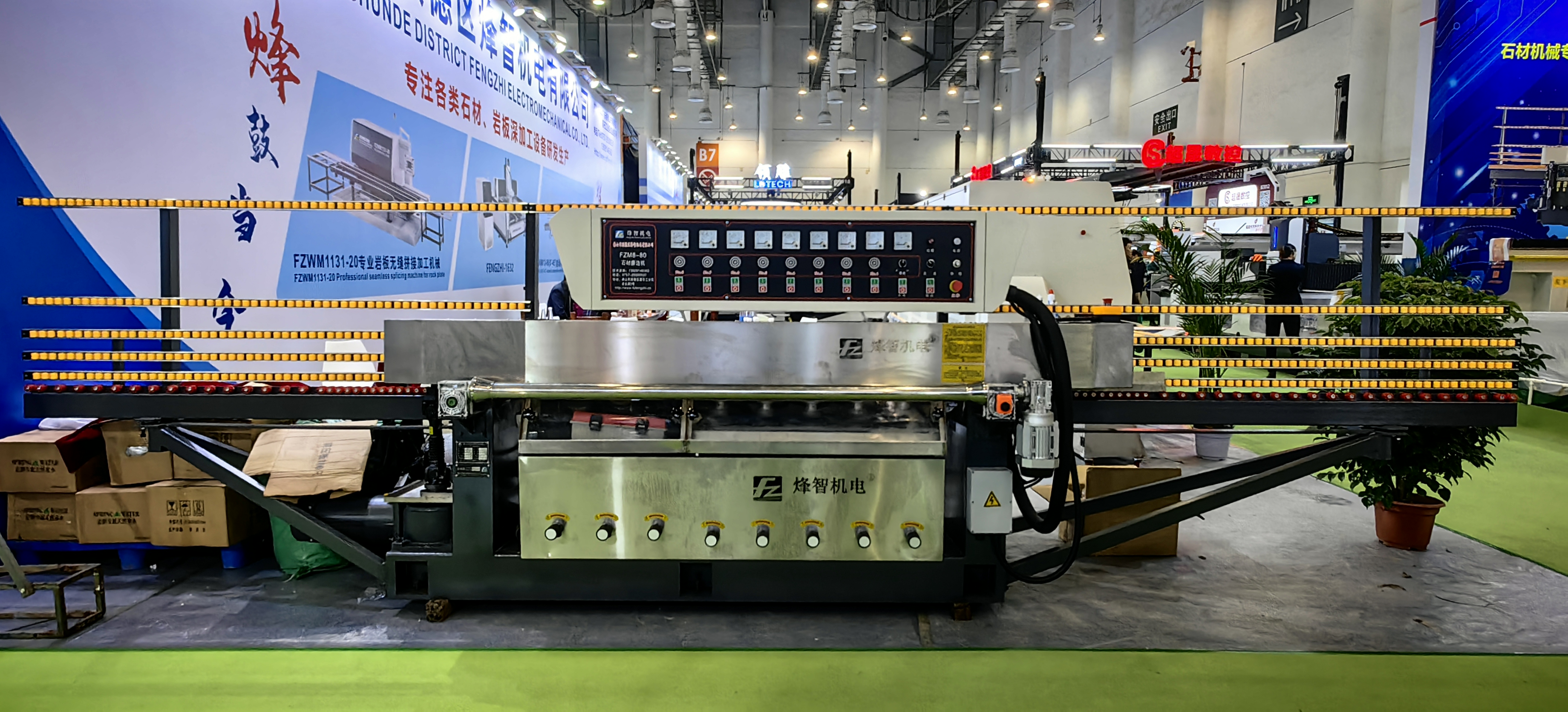

Professional 8 Motors Stone Edging and Polishing Machine for Various Special Shapes
This machine is a straight shape edge grinding machine specially developed according to customer needs. Solved the problem of easy deformation of the forming/profile wheel and increased cost for customers and inconsistent processing of batch products when processing shape edges. (For example, when processing a half circle, it will appear as a straight bevel after a period of time.) Various shape edges such as round edges, French edges, straight bottom edges, and line edges of flat stone can be ground according to different sizes and thicknesses of the stone. Rough grinding, fine grinding, and polishing are completed in one go, and the processed product has a brightness that is basically consistent with the surface of the board. It is easy to operate and maintain, and when the machinery is in normal use, it is equivalent to the workload of 20 people for normal stone processing. And eliminate process defects caused by manual processing.
SPECIFICATION
Motor | Wheel name | Dscription | Qty | Function |
01# | Pulling grove Wheel | Ø 150 | 1 | Pulling groove |
02# | Electroplating Wheel | Ø 150 | 1 | Rough grinding shape |
03# | Burning Wheel | Ø 150 | 1 | Fine grinding shape |
04# | Burning Wheel | Ø 150 | 1 | Fine grinding shape |
05# | BD Polishing Wheel | Ø 150 | 1 | Polishing shape |
06# | BD Polishing Wheel | Ø 150 | 1 | Polishing shape |
07# | BD Polishing Wheel | Ø 150 | 1 | Polishing shape |
08# | BD Polishing Wheel | Ø 150 | 1 | Polishing shape |
